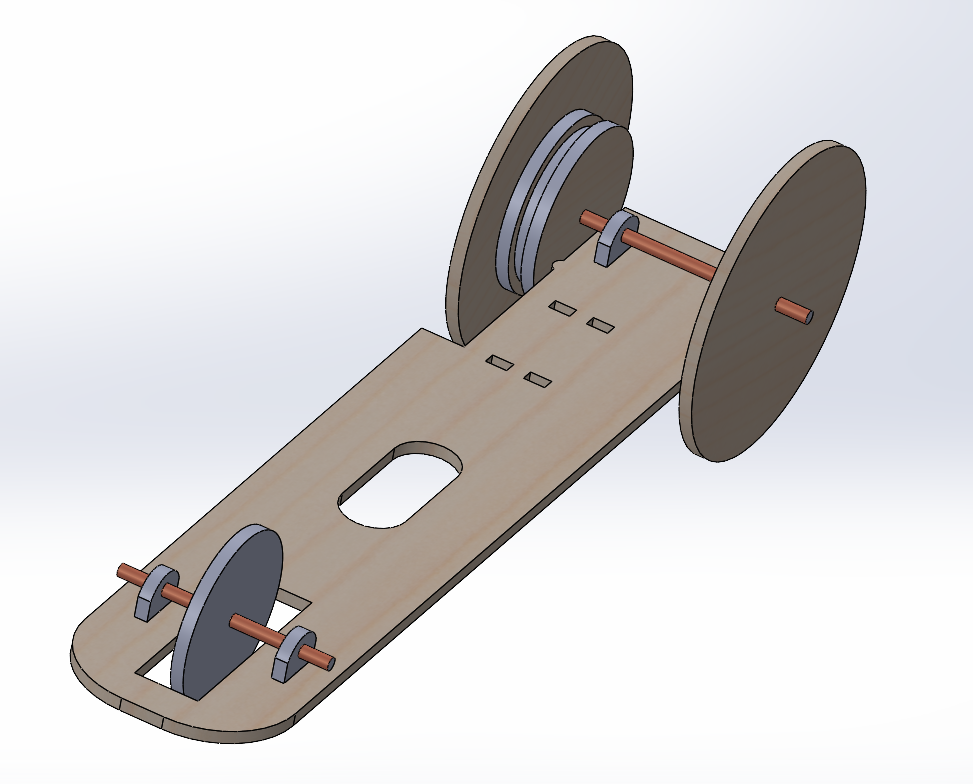

To make the BRM-e racer we are going to make several parts:
- the chassis
- the axle holders
- driven pulley
- back wheels
- front wheel
Fire up SolidWorks and follow the videos - good luck!
Please note: the 'straight slot' button has been removed. Simply type 'straight slot' in the search bar (make sure it is on commands) at the top right.
At the end of lesson upload your work to BourneToLearn.com
Extension Tasks:
- make a M3 nut
- make a threaded bar
- make a battery box
- make a DC motor
