The Drawer Alarm

1 Designing the PCB



Learn It

  • Although the circuit you've designed should be fine, we need to make a few changes before we design a PCB
  • Firstly we want to use a 9V supply (as they're cheaper), so we'll need a voltage regulator.

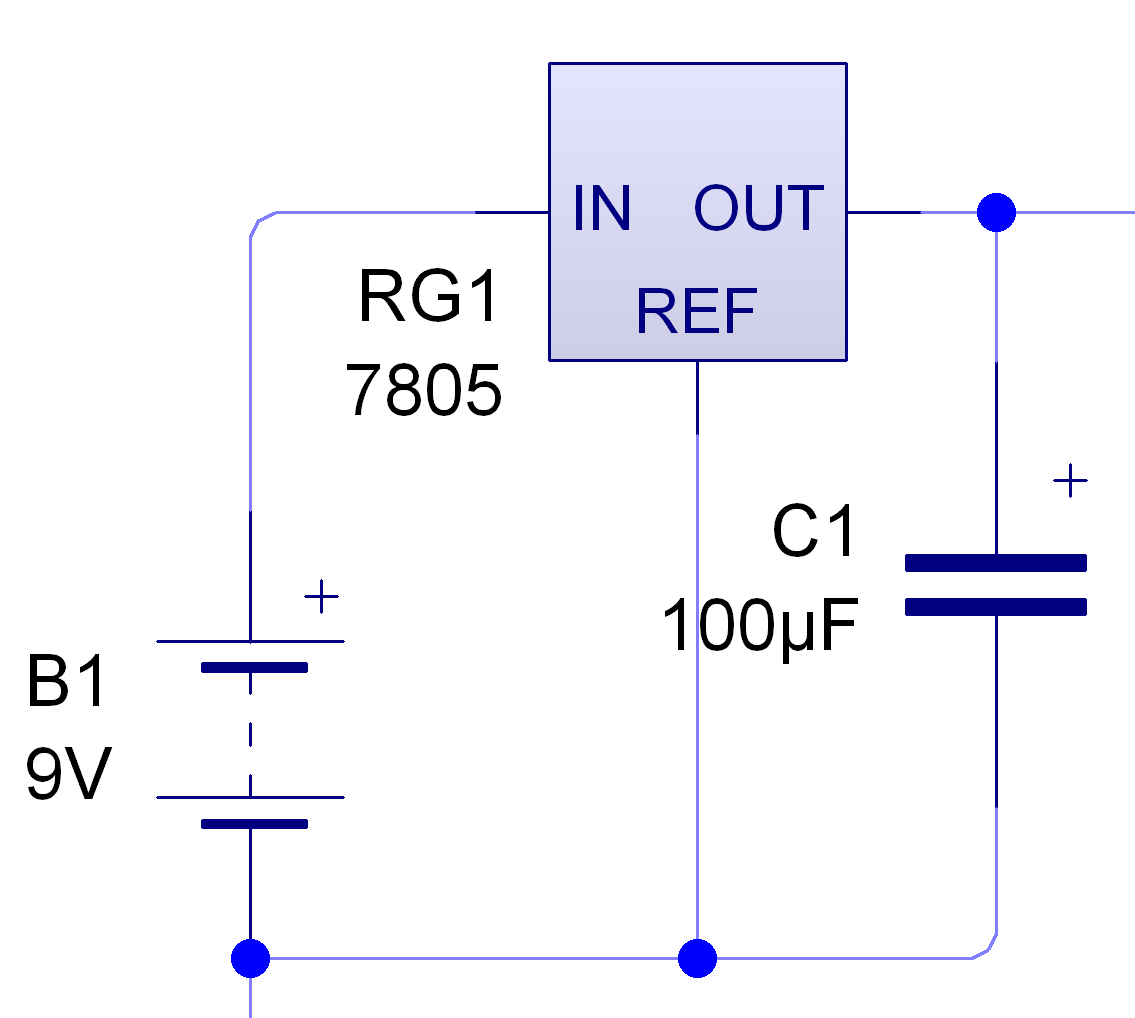

  • Modify your circuit so you use the setup below to provide power.


  • Check with your teacher that your circuit is correct before proceeding.

Try It

  • You're now going to design your own PCB.
  • Initially you just need to follow this guide.
  • Click on this button to begin the PCB Wizard, you will find it at the top of the workspace.

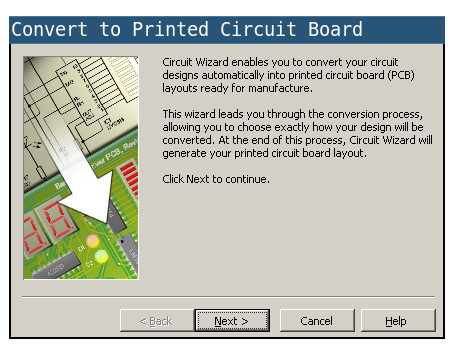

  • Click on Next

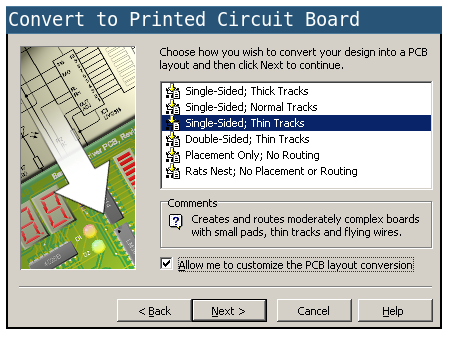

  • Choose Single Sided/Thin Tracks and check the box  "Allow me customise the PCB layout conversion" at the bottom.

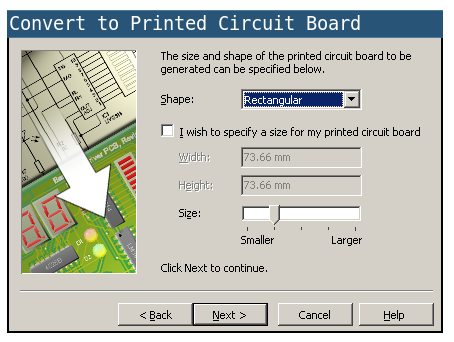

  • The default size of the board will be fine

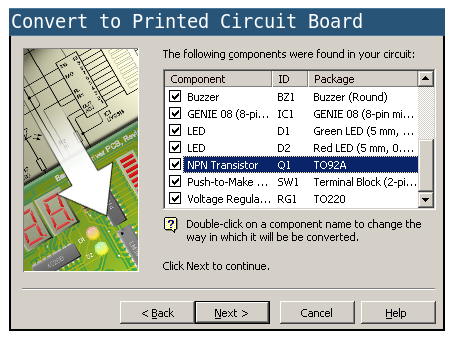

  • As will the default components

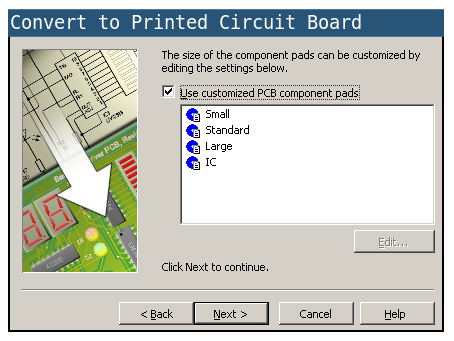

  • And we need to use small pads

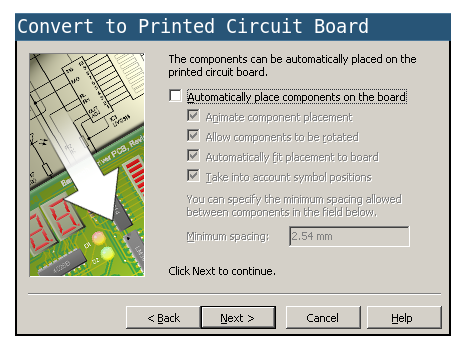

  • Lastly uncheck the box, so that we can place components ourselves.

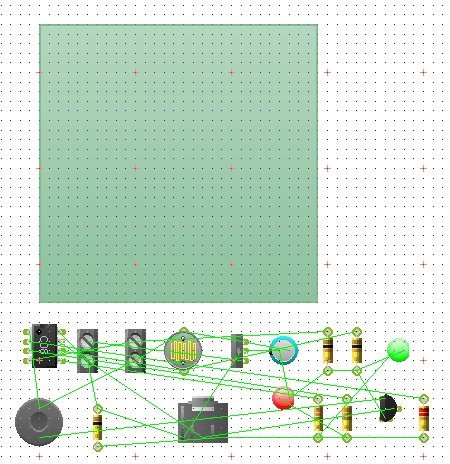

  • Click convert and you should have something that looks a little like this.


Badge It

  • It's now up to you to try and create the PCB.
  • You'll be awarded your badge depending on the size and neatness of your finished design.
  • A silver badge will be awarded if you create a viable PCB of any size, without using jump wires.
  • A gold badge will be awarded if you create a viable PCB no larger than 100mm by 100mm, without using jump wires.
  • A platinum badge will be awarded if you create a viable PCB no larger than 50mm by 50mm, without using jump wires.
