The Drawer Alarm

1 Setting up sensors.

Like many of the projects you have completed in the past, this one will use a GENIE C08 micro-controller.
GENIE chips can receive both analogue and digital signals.

Let's build a simple circuit to try and get a GENIE chip to detect an analogue signal.

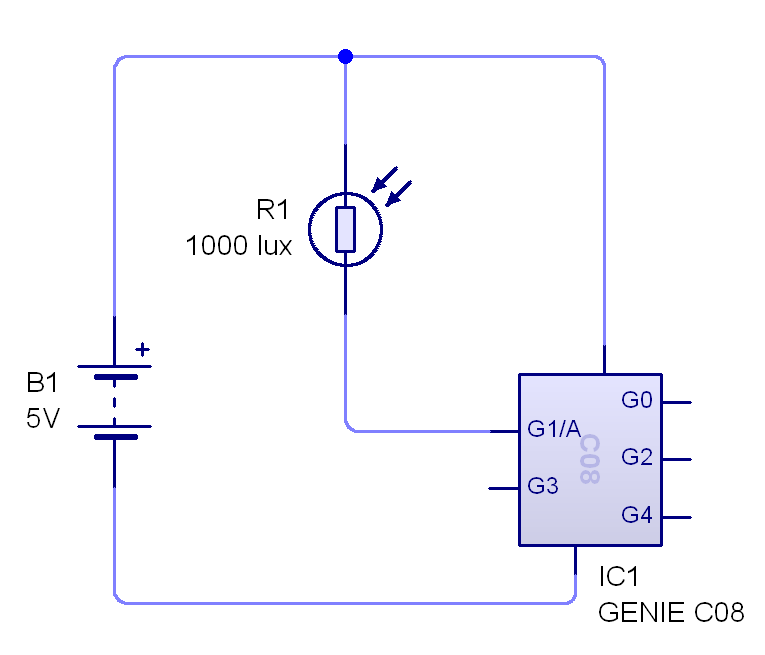

Use CircuitWizard to build the circuit shown below
When opening circuit wizard, you need to choose the 'Circuit with GENIE Flowchart' option.
You will find the LDR under 'sensors' in the drop down menu.
You will find the Genie 08 under 'microcontrollers' in the drop down menu.
PLEASE NOTE: you can only change the 'lux' value when you play the circuit, you can click on the LDR and change the lux value.

This circuit has an LDR connected to the analogue input of the GENIE chip.
A light dependent resistor is a resistor that responds to light.
- When light levels are high, the resistance is low.
- When light levels are low, the resistance is high.
In theory we should be able to use the GENIE chip to detect light levels.
So that we can simulate the circuit, we need to give the GENIE chip a program.
Use this loop.

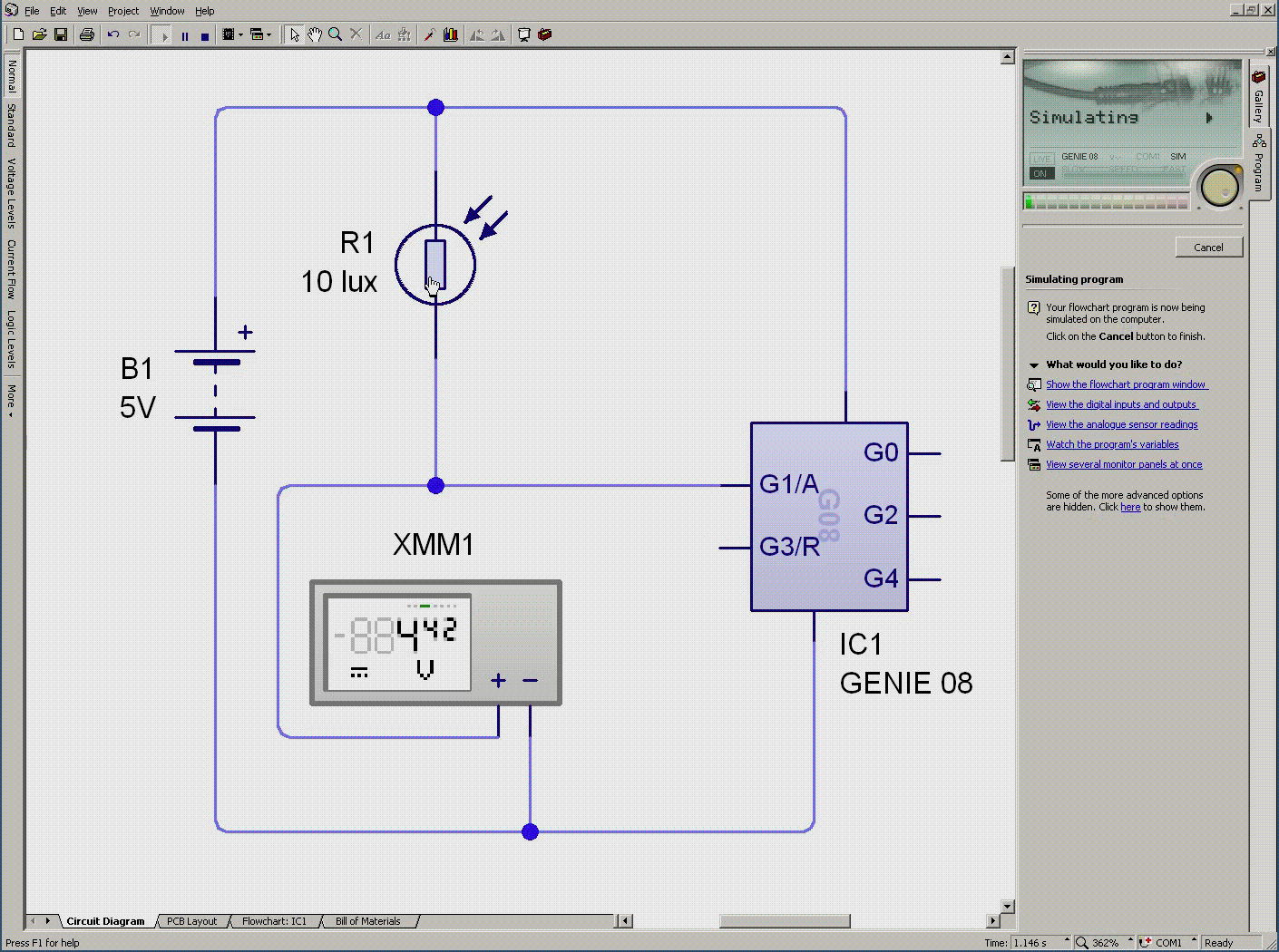

Micro-controllers can't detect resistances, they only read voltages. Let's have a look at the voltage drop between the input pin and ground for out circuit.
Recreate this circuit in CircuitWizard and have a look at the voltage differences that are generated when the light levels reaching the LDR are altered.
You will be able to view the analogue value changing when you change the light level by clicking on the 'View several monitor panes at once', this is on the right, highlighted in blue.
The digital multimeter (XMM1) can be found under 'Test Instruments' right at the bottom of the gallery.

As you can see, altering the light levels at the LDR has a minimal effect on the voltage at the pin. While we could use a setup like this, we'd have a very insensitive detector.

There's a way to provide a larger voltage differential at the pin, by adding a single resistor to the circuit.
We're going to create something called a potential divider.
The visualisation below shows a standard set up for a potential divider. You can use the slider to alter the resistance of the LDR, and type in values for the resistor beneath it. Look at what happens to the voltage readings for V_out_.

Play around with the value of the resistor. We want a resistor value that is high enough to provide a reasonable voltage range, but not too high.

Now you know how to set up an analogue sensor on the GENIE chip, use Circuit Wizard to create a light sensor circuit.
We'll also need a switch connected to a digital input. You've done this before when you made the digital die. Have a look at this resource if you need reminding about digital inputs.
Once you've completed the inputs for the circuit, take a screenshot.

We're going to need a couple of LEDs (one red and one green) attached to the digital outputs of the GENIE chip.
Don't forget that LEDs are sensitive to large currents can can 'pop' if the current is too high. A couple of 330 Ω resistors should be sufficient to protect them

Create a flowchart program that causes the LEDs to alternately flash on and off when the light levels reaching the LDR are high.

Create a flowchart program that saves the current light level reaching the LDR in a variable, when the button is pushed.
The program should wait for a few seconds and then the LEDs should flash on and off if the light level goes above the recorded level.
